APAds (Air Conditioning Protection & Diagnostic System)
APAds is an electronic control module which identifies and reports A/C issues via a fault code (blink code).
If you are receiving a blink code, or if you would like to test your APAds unit, follow the instructions below. To learn more about the features of APAds, click here.
STEP 1: Locate your part number

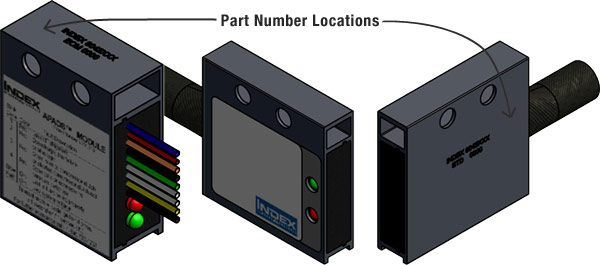

Part numbers are either located on the top surface of the control module; or, on the back surface of the module, opposite the label.
STEP 2: Select your part number. Download your help documents.
When you select your part number, your control module type will be displayed, as well as the available documents for download. Each control module type has two documents for download.
| Module | Part Number | Document Name | Downloads |
|---|---|---|---|
| CM-812 | 8042114, 8042124 | Product Description & Troubleshooting Manual | 4046056-C.pdf |
| CM-812 | 8042103, 8042105, 8042106, 8042107, 8042108, 8042121, 3939314, 3939313, 3939315 | Air Conditioning Troubleshooting Flow Chart | 4046063-C.pdf |
| CM-813 | 8042103, 8042105, 8042106, 8042107, 8042108, 8042121, 3939314, 3939313, 3939315 | Product Description & Troubleshooting Manual | 4046055-B.pdf |
| CM-813 | 8042103, 8042105, 8042106, 8042107, 8042108, 8042121, 3939314, 3939313, 3939315 | Air Conditioning Troubleshooting Flow Chart | 4046060-A.pdf |
| CM-814 | 8042156, 8042157, 8042152, 20579815, 20579810 | Product Description & Troubleshooting Manual | 4046054-E.pdf | CM-814 | 8042156, 8042157, 8042152, 20579815, 20579810 | Air Conditioning Troubleshooting Flow Chart | 4046061-C.pdf |
The "Product Description & Troubleshooting Manual" contains product specifications, installation tips and common causes for blink codes.
The "Air Conditioning Troubleshooting Flow Chart" contains testing procedures to ensure the control module is installed and functioning correctly.
Contact Technical Support at 800-726-1737 for further assistance.
